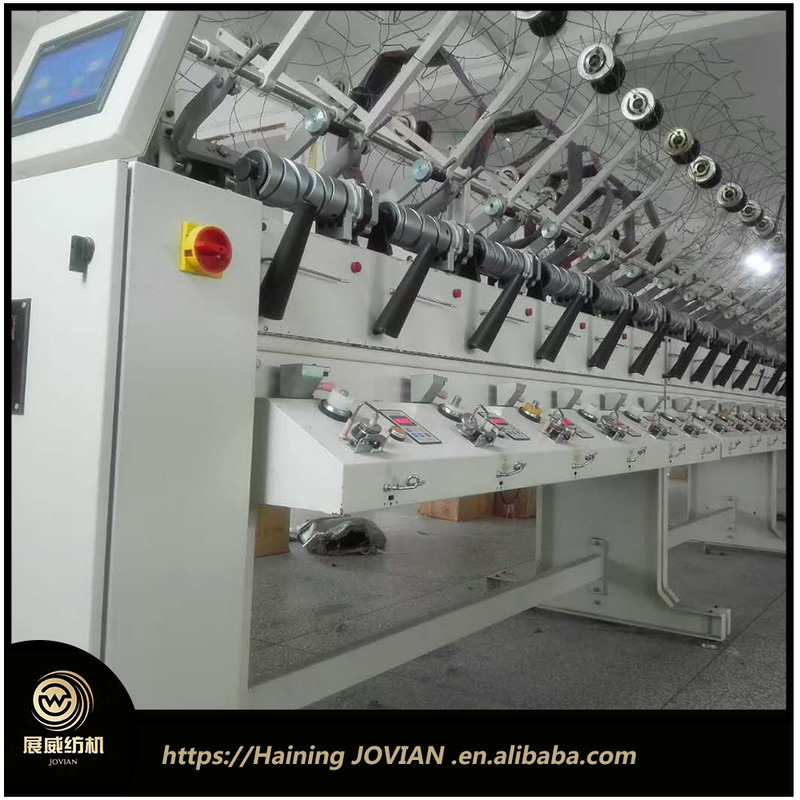

ZW016P Winding Wires Hank To Cone Winding Machine

1 Set
MOQ
ZW016P Winding Wires Hank To Cone Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Application: Winding Yarns
Automatic Grade: Semi-automatic
Production Capacity: 300-1000m/min
Model Number: ZW016P
Voltage: 380v/220v
Power: 90w /spindle
Dimension(L*W*H): 13700mm*1050mm*1650mm
Weight: 350kg
Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Certification: ISO CE
Name: PRECISION WINDING MACHINE
Basic Infomation
Certification: ISO CE
Model Number: ZW016P
Payment & Shipping Terms
Packaging Details: packaged form :export wooden packing package size: length 13700mm*1050mm*1650mm per set
Supply Ability: 5000 Set/Sets per Year
Product Description













Product parameters





ZW016 P type skein winding machine for chemical fiber, cotton yarn, yarn, low elastic yarn, winding into the conical or cylindrical, for the use of the process, good shape, high work efficiency, has no edge collapsing phenomenon, reduce the labor intensity of the process, adapt to the high speed production.

1.winding drive: each spindle drive alone, VVVF;
2.winding speed and density: 300-1000 M / min;
3,.with the electronic yarn breakage self stop function;
4.yarn diameter and dynamic range: diameter less than 290mm. The dynamic range is 150mm;
5.with a single spindle length function;
6.advanced touch screen type man-machine interface.





Bobbin type6"(170mm)
StructureDouble 12-96 spindle per set
Current sourceThree-phase power380V 50/60HZ
DriveIndependent motor drive single spindle
Power consumption0.09kw /spindle
Finish bobbinCylinder(0°)/cone;4°20, 5°57, 9°15
Bobbin diameterMax200-290mm
Yarn speed300-1000m/min
Electric overlapping deviceVariable frequency controller
Length counting device

Programmable logic controller (PLC) centralized control / display meter

length

Tension deviceEach spindle has a self-cleaning and waxing
Mechanical yarn cleaning device

Configuration of each spindle can be fine tuned mechanical cleaning

knife

Self stopping device for broken yarnElectronic yarn breaking
Speed regulating deviceFrequency control

Horizontal moving device of cylinder

 yarn soft edge

Mechanical / suitable for loose
Electronic yarn cleaning deviceOptional
JointairOptional
Blowing cleanerOptional
Lamp systemOptional
Sets size13700(length)×1050(wide)×1650(high)mm
