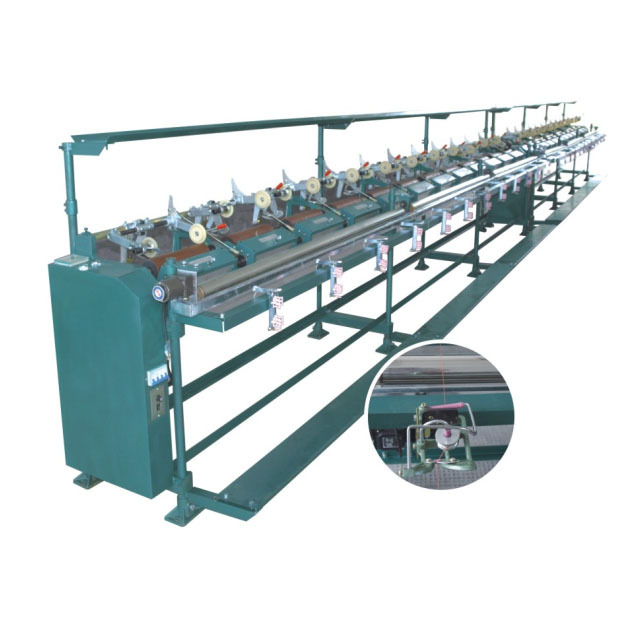

Winding Chats FEIHU Skein To Cone Winding Machine / Winder

1 Set
MOQ
Winding Chats FEIHU Skein To Cone Winding Machine / Winder
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Application: Winding Yarns
Automatic Grade: Automatic
Production Capacity: 100%
Memory Capacity: Request
Voltage: 380v/220v
Power: 550W/24Spindles
Dimension(L*W*H): L 8600xW 500xH 1700mm
Weight: 240kg
Warranty: Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Certification: Certification
Spindle: 24 Spindles
To Select Device: Electric Feed And So On
Name: FEIHU Hank To Cone Winding Machine/winder
Function: MAKE COCOON BOBBIN THREAD
Product Type: Semi Automic
Product: Silk Yarn
Usage: Winding
Material Capabilities: Textile Material
Optional: Electric Feed, Oil. Wax Device
Power: 0.55kw/12spindle
Basic Infomation
Certification: Certification
Payment & Shipping Terms
Packaging Details: Export Wooden case
Supply Ability: 10 Set/Sets per Day
Product Description

One Motor Hank To Bobbin Winding Machine

One Motor Hank To Bobbin Winding Machine with electric feed hank to cone winder machine especially suitable for chemical fiber silk, yarn-like disposable rose into the cylinder tube yarn, forming beautiful, yarn tension can be controlled, reduces the production of cylinder down the cylinder in the past, easy and cost-effective. Users matching the oil, wax device.

Model

One Motor Hank To Bobbin Winding Machine

Number of spindles

12 spindles(optional)

Spindle gauge

360mm

Dimensions

L4300mm x W500mm x H1700mm ( 12 spindles)

Raw material

Chemical fiber, silk, yarn and so on.

Cylindrical assembly wound package

See the sample tube from the customer

Form of operation

Single side or double sides

Spindle speed range

≤300-400m/min

Rated power

370w/12 spindles

Productivity

8kg-10kg/spindle(within 24 hours)

Bobbin type

Flat bobbin or cone(optional)

Bobbin length

150-290mm
