Three phase motor stator coil making machine
(1) Machine main function and characteristic
The stator coil making machine could be used to do multi-connect and multi-layer winding.
This coil making machine is with 4 winding heads, In one time, the machine could wind 1-4 groups of coils simultaneously, high output.
Tooling change is very fast and convenient.
Could save 999 group data, and machine automatic stop once wire run out
Free of maintenance.
(2) Application
This Three phase motor stator coil making machine is suitable for multi-connected and multi layer winding. Apply to all kinds of micro motors such as a motor, pump motor, air conditioner motor, three phase machine, etc.
(3) Technical data
| Production name: | three phase stator coil making machine |
| Winding head: | 1~8pc |
|
Wire diameter: |
0.2~1.0 mm |
| Swing diameter: | 220mm |
| Screw travel: | 170mm |
| Max stator O.D: | 160mm |
| Max stack height: | 100mm |
|
Winding speed: |
≤3200RPM |
| Turn number resolution: | ±0.2 turn |
| Power supply: | 220V/50/60HZ |
| Motor power: | 0.75 KW |
| Dimension: | L1520*W1220*1290mm |
| Weight: | about 200kg |

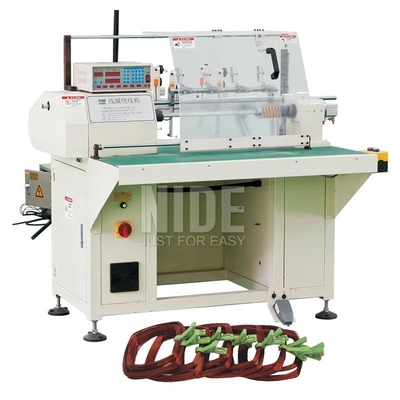

Coil making machine picture
Press the follow green button and the coil making machine starts to work
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
