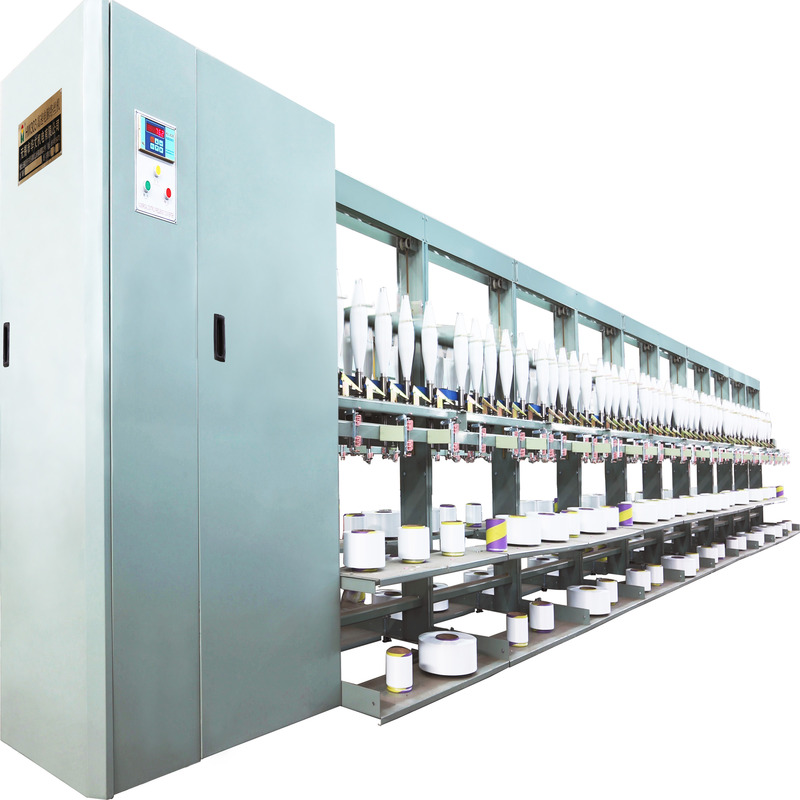

High Speed Yarn Pirn Winder Machine/ yarn winder machine HW303
This machine is useful to reel raw yarns in different shapes into bi-conical bobbin yarn with definite specifications for two-for-one twisting machines. It is indispensable pre-job supporting equipment for two-for-one twisting machines.
Chemical fiber yarns, such as DTY, POY, HOY, FDY etc (20D-500D)
|
1 |
Max. Spindle Speed |
5000 r/min |
|
2 |
Spindle Distance |
230mm |
|
3 |
Winding-up Speed |
300-700m/min |
|
4 |
Reeling Linear Direction: |
S or Z way |
|
5 |
Max. Winding-up Size |
Φ42,L240-320 mm |
|
6 |
Max. Winding-up Diameter |
Φ100 mm |
|
7 |
Max. Winding-up Capacity |
1.2 Kg |
|
8 |
Motor Power |
Main motor:3.7Kw; Horizontal motor:0.75Kw |
|
9 |
Outside Diameter |
(60 Spindle) 9300x1260x1600 |
|
10 |
Winding-up Method |
Warp, Weft,Combined, Bottle |
|
11 |
Max. Unwinding Height |
470mm |
|
12 |
Unwinding Type |
Cylindrical, Conical, Pineapple type |
|
13 |
Tensioner |
Synchronous comb tensioner |
|
14 |
Up-and-down Speed |
15-75mm/s |
|
15 |
Spindle Transmission Method |
Tangential Belt Rotates in tangential direction |
|
16 |
Up-and-down Control |
Inverter Control |
|
17 |
Winding Bobbin Fixed Method |
Elastic Tension |
FAQ:
Are you the manufacturer or the trading company?
We are the experienced manufacturer of textile machines, especially for the two-for-one twisting machines, doubling winder machines, yarn covering machines and etc. We have got the self-support imports and exports right.
What is your advantage compared with other textile manufacturers?
We are expert at making yarn machines for almost 20 years and we have a professional technical team who can provide special customer requirements. Our machines have been exported to a lot of countries such as Vietnam, South Korea, Uzbekistan, the Philippines, Tunisia, Morocco, Indonesia and so on.
What kind of service can you offer?
Design with your requirements by professional team.
ISO 9001:2008 certificates and letters patent.
Engineers go overseas for training.
How to check my order at last?
We warmly welcome you to visit our company in Wuxi, which is close to Shanghai, for checking your machines. If you don’t come here, we can also take photos and videos for your confirmation.
Customer Visiting:
Certifications:
Company Information:
Packaging & Shipping:
We mostly use the nude cargo with waterproof plastic bags. We will separate the whole machine into sections after adjustment, and then put each section one by one into the container.
