Features

Specifications

Applicable Industries: Manufacturing Plant, Machinery Repair Shops

Showroom Location: Indonesia, India

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2021

Warranty Of Core Components: 1 Year

Core Components: Motor, Computor Display, Control Board

Condition: New

Application: For Coil Winding Machine

Automatic Grade: Semi-automatic

Production Capacity: 80%

Power: 580W/spindle

Dimension(L*W*H): 2000mm*1190mm*2130mm

Weight: 610 KG

Warranty: 1 Year

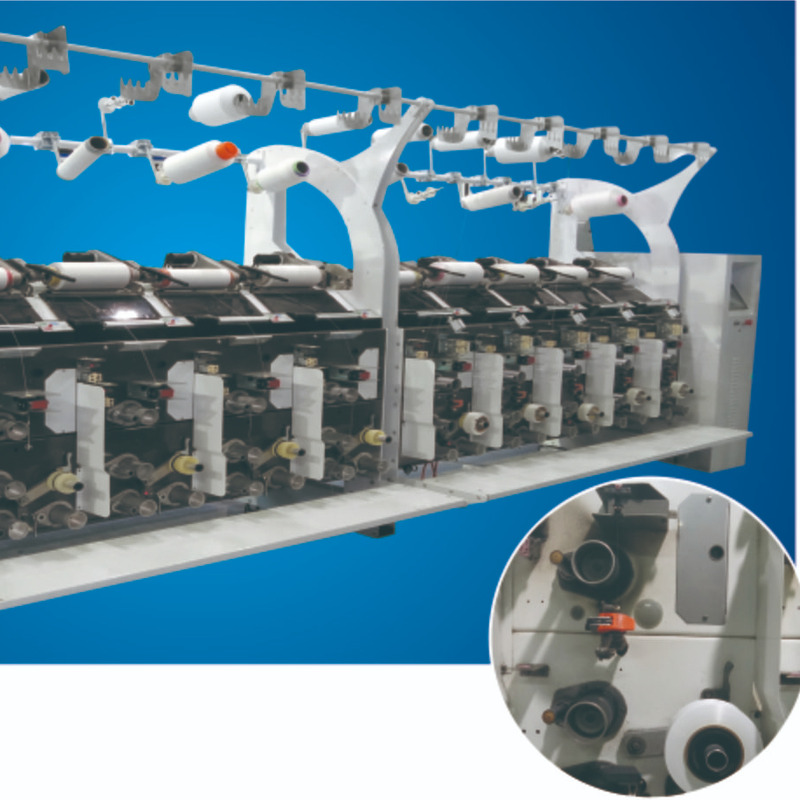

Product: Air Covering Yarn Coil Winder Kc215

Application Field: Spandex Covering Yarn,air Covering Yarn

Take Up Bobbin: Cylindrical Cone

Spindle Gauge: 485mm

Speed: Up To 1100m/min

Traverse: 130mm-250mm

Actual Power Cunsumption: 25%-50%

Type Of Tension: Electronic Tension

Type Of Winding: Digital Precision Winding

Min Unit: 4 Spindles Per Set

Basic Infomation

Payment & Shipping Terms

Packaging Details: Wooden Case and Pallet(according to customer's request) high speed Electronic Yarn Guide Air Covering Winder machine KC215B winder machine for yarn air covering winder kc215 coil winding machine

Supply Ability: 600 Unit/Units per Month

Product Description

Applied range: mainly apply to wind FDY+FDY, FDY+DTY, DTY+DTY with air jet; FDY or DTY air pocket winding with spandex and so on.

Features
①Computer intelligent control system, ensure convenient process adjustment and unlimited combination；

②Intelligent electronic guide yarn, double increase production efficiency and reduce cost;

③Winding and overfeeding systems, all adopt 36V safety voltage brushless DC motor, reduce power consumption cost;

④All motors are controlled by digital system, ensure high precision motor revolution and product consistency and stability.

No	Item	Details
1	Machine structure	Single sided, single layer, 4 spindles per sections, 10 sections, 40spindles/set
2	Spindle gauge	485mm
3	Type of winding	Digital winding or precision winding
4	Linear speed	Up to 1100m/min (depend on the process parameters)
5	Type of tension	Electronic Gate tension
6	Take-up tube	Cylindrical
7	Package shape	Straight edge or tapered edge shape (The taper angle can be adjusted)
8	Traverse length	130mm-250mm(It can be changed according to the actual situation
9	Take-up package diameter	Up to 280mm(depend on the tank size, there are certain limitations)
10	Rated power	580W/spindle
11	Compression air	6Pa(depend on the process parameters)
