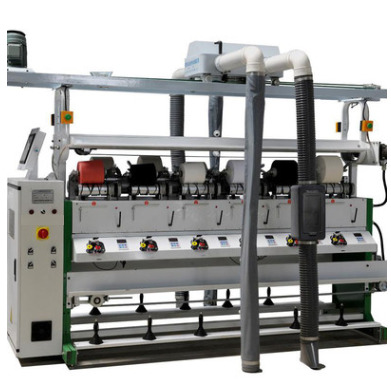

Precision winding machine is a substitute for imported products, its main features are the use of modern electronic technology, single spindle drive, each spindle configuration one Only the motor and a frequency conversion speed regulating mechanism, to achieve rapid increase, decrease the process effect; Automatic stop of yarn breaking using electronic optical control induction device, no touch Point stop device, digital display system adopts non-contact counting and full cylinder stop. Skein frame can be arbitrarily adjusted in diameter by double wheel overfeed system Reach a uniform rate of yarn delivery. The Hank yarn is formed in one step and equipped with automatic refueling system. Shape bobbin beautiful, inside and outside elastic consistent, used Slow start, not easy to break yarn. Differential microsystem eliminates the forming unevenness. Suitable for all kinds of high elastic silk, low elastic silk and natural and blended fiber Winding.
|
The main technical parameters |
|
Type: single side single spindle automatic control, 4 ingots for one section |
|
Pitch: 300 mm |
|
Spindle count: 8 spindle/set, 12 spindle/set, 16 spindle/set,20 spindle/set, 24 spindle/set |
|
Spindle speed: each ingot is controlled by a 0.18KW motor and a frequency converter Can increase, decrease speed, infinitely variable speed |
|
The spindle speed is 1600 revolutions per minute, |
|
Bobbin form: straight, tapered |
|
Bobbin capacity: 250g, 500g, 750g, 1000g 2000 grams, adjustable on a spindle |
|
Bobbin forming: The pattern of copying plate can be wound at different angles Straight and conical barrel with required edging |
|
Motor power: 0.18KW/spindle |
|
Lead wire running range: 120-200 mm, variable edging |
|
Machine size: 7980×930×1888 mm (length x width x height)/24 ingot |
As a one-stop textile machineries provider, we strive hard to offer scalable and powerful solutions for your business. Our years of experience in the industry help us in delivering true value solutions for all kinds of application needs. Our highly robust, secure and affordable solutions aim at fulfilling your bespoke hosting needs. Our continuous quality improving management and risk control services are designed exclusively to help your business attain peak performance and enable you to focus on your core business activities.
Q: How to get samples?
A: There are different ways to get samples from us. In general, the samples are free of charge, but the express fee is borne by the buyer.
Q: How can I get your price?
A: The price list is base on the products you are looking for. You are welcome to send us e-mail to get quotation.
Q: How to schedule a tour of the facility?
A: If you want to inspect the goods or visit the factory, welcome, just make an appointment in advance
Q: How to place an order, or if a minimum order exists
A: We have different MOQ for different products. Normally, the MOQ is 100 Units for machineries components, but we will communicate with you about the specific situation.
Q: What payments terms are?
A: Prefer L.C, D.P and T/T, other payment methods can be communicated.
Do not accept remittances from high-risk or sanctioned areas
Q: Do you ship worldwide?
A: Yes. We have international shipping experience more than 10 years.
Q: What is the delivery time?
A: 10- 40 days depending on the quantity of your order.
Q: What your industry certifications are (e.g., ISO.)
A: ISO 9001 and CE certificate.
Q: What is your warrantee if we have any problems?
A: We will inform our local agent to support you or we provide online service. And our engineer will take a personal visit if serious problems.
Q: Is there a discount if I purchase in large quantities?
A: Yes, sure. The specific amount or percentage of discount varies in different situations.
Q: Can I return it if I'm not satisfied?
A: Yes, sure. But it needs to be discussed on a case-by-case basis
