High Quality GH018-Y Automatic High Speed Embroidery Thread Winding Machine

1 Set
MOQ
$13,000.00(1 - 1 Sets) $12,700.00(2 - 3 Sets) $12,500.00(>=4 Sets)
Price
High Quality GH018-Y Automatic High Speed Embroidery Thread Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Winding Machine
Showroom Location: None
Video Outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Bearing, Gearbox, Motor
Condition: New
Application: Sewing
Automatic Grade: Automatic
Production Capacity: 300-1000meters/min
Memory Capacity: 999999M
Voltage: 220V/380V
Power: 1.2 Kw/ Set
Dimension(L*W*H): 2200*760*1840mm
Weight: 600 KG
Warranty: 1 Year
After Warranty Service: Spare Parts
Speed: 400-1000 M/Min
Spindle No. Per Set: 4 Spindles
Take Up Bobbin: Cone Type / Cylinder Type / Horn Type
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden Box
Supply Ability: 30 Set/Sets per Month
Product Description
Product Description

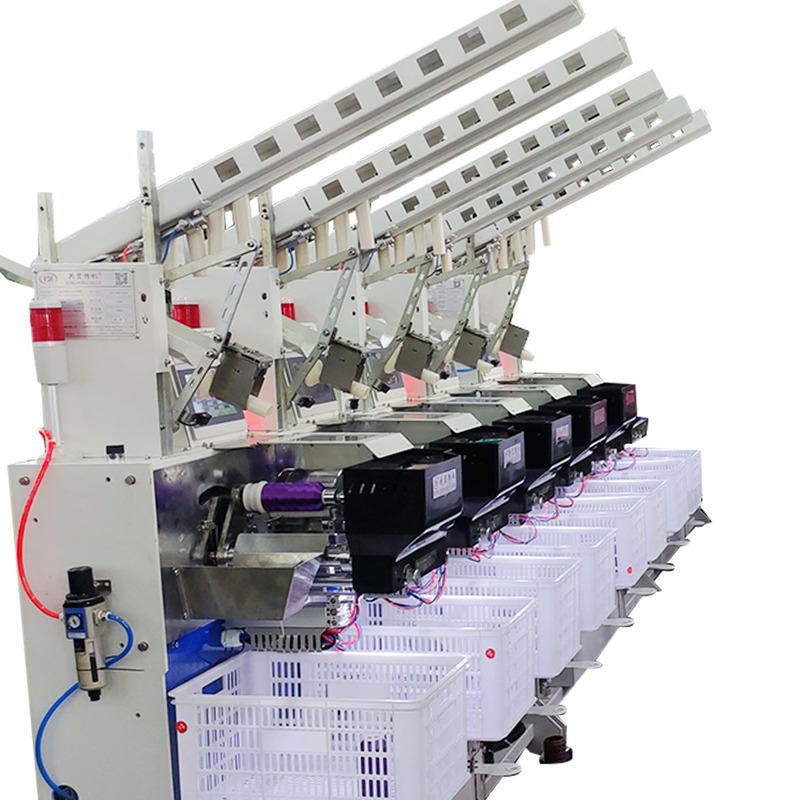

GH018-Y Type Automatic High Speed Embroidery Thread Winding Machine
GH018-Y Type fully-automatic high speed embroidery thread winding machine is suitable for winding sewing thread, embroidery
thread, nylon thread, high strength wire and other materials. This machine adopts automatic feeding and winding system. It has the
functions of computer automatic counting length, frequency conversion speed regulation, cam type wire device and oil pump
circulating oiling device. It has good forming, high efficiency, convenient operation, safe and reliable, and wide use.

Technical Parameters
Model
GH018-Y Automatic
Shape of Winding
Embroidery Thread
No. of spindles
4 spindles
Drive
Separate motor system
Control Model
Computer program
Max Yarn Speed
1000rpm
Air pressure
2KGS
Take-up Diameter
Ø140mm
Power
220V(380V) 1.2KW
Dimension
2400×800×1840mm
Weight
700KGS
Performance Features:
1. Automatic feeding and winding system with high degree of automation.
2. Automatic bobbin feeding and automatic stop without bobbin.
3. Non-contact wire breaking detection, sensitive induction.
4. Automatic pipe changing is fast and stable.
5. Computer automatic meter long, plus or minus 0.5% accuracy .
6. Automatic control of line speed, which can be set at any speed of 300-1200 meters per minute.
7. The winding yarn adopts roller CAM wire system, which is fast and low in sound.
8. The wire CAM is polished with special hard material, which is smooth and wear-resistant and does not hurt the yarn.
9. The circulating oil loading system can directly set different tanker speeds, and with stable linear speed, the oil loading can be even. Each spindle is always in full oil level. Each tanker is equipped with a filter device to prevent oil spraying and waste.Large reflow tank and oil baffle can undertake the back flow of floss and oil produced in operation and filter the ground without pollution. Portable filter screen, easy to clean.
10. Small area, fast speed and 5-6 times more efficient than traditional machines. High levels of automation greatly reduce thenumber of workers.
About customization
1. Make the suitable clip for you based on your cone.
2. We have tanker oiling and precision fuel injection options.
3. Installation of threads conveying device.
4. Installation of Air splicer.
5. If you have more ideas, welcome to talk to us.
Packing&Shipping
According to requirements, suitable for packaging by sea, rail, etc.
Size Information
Length

Width
Height
Weight
2400mm

800mm
1500mm
700KG
Related Products
After Sales Service




- One year warranty
- Spare parts
- Online support
- Video technical support
- Field maintenance and repair service
Company Introduction
Foshan GongHong Textile Machinery Co., Ltd which adhering to the quality and service business philosophy. Serving Customers - We are dedicated to the satisfaction and success of every customer. “Innovation, pursuit of excellence "is the constant pursuit of Foshan GongHong Textile Machinery Co., Ltd, look forward to sincere cooperation with old and new customers and create a better future! Our company has a strong ability to develop new products, customers design, manufacture various types of textile machinery products, in the face of fierce market competition, the company is with its own advantages, the integration of external resources, optimize the internal management, continuous innovation, towards business specialization, diversification direction strides! Our products have like automatic sewing thread winding machine, automatic sewing spool winding machine, automatic embroidery thread winding machineGH018-S high-speed soft winder, high speed hard winder, yarn oil special winder, high speed large volume winder, hank to cone winder, high-speed yarn doubling winding machine, 230 type winder, Textile special electric cleaning winder, high speed inverted yarn winder, full-automatic winding machine and etc., totally 7 series include more than 30 types of machines.

Our Services & Strength

1. Culture Advantage
The company pays attention to the construction of enterprise culture, adopts modern advanced management mode, and comprehensively introduces CIS enterprise image recognition system. The establishment of a scientific and clear organizational structure, high quality talents, stable operation.
"Customer trust, preferred brand suppliers" is our enterprise's pursuit of goals, we are always in order to strict demands on
ourselves.
Advanced high-tech equipment, for the adjustment of product structure, development of new quality products to create conditions. In order to give full play to the early development of high-grade, high-level, distinctive and promising new products, the "GongHong textile machinery" brand has achieved a qualitative leap.
2. Product Advantage
Our company has a strong ability to develop new products, customers design, manufacture various types of textile machinery
products, in the face of fierce market competition, the company is with its own advantages, the integration of external resources,
optimize the internal management, continuous innovation, towards business specialization, diversification direction strides!

3. Production Advantage
Time passed by and life changed, After many years of constantly efforts to innovation, GONGHONG has been a strong enterprise. When
the industrial 4.0 generation coming, the high level of informatization and industrialization deep integration of "two
integration" started, to cater to the new situation, GONGHONG make foresighted strategic on equipment automation, management
system informatization, decision-making system digitization, high educated staffing, etc., ensuring production safety, high
quality, efficient, stable and environmental friendly, well meet the customer's different requirements.

4. Service Advantage
GONGHONG pay high attention to after-sales service, and had built up an after-sales service team, dedicated to the customer for
product installation, commissioning, training and other services, also solve the production problems.

While providing quality service, we help customer make proposal and workable solutions to improve productivity, on machines
complement, model selection, production safety, staffing and so on, which win good appraise from our customers. Our after-sales
service has gradually become a very important part of product marketing in GONGHONG characteristic.
