Cheese yarn cone to cone winding / coning machine
Product description
TS008S High Speed Soft Cone Winding Machine——its function is winding perfect soft yarn cone for the yarn cone dyeing and it is suitable for winding fiber, cotton yarn, wool yarn, FDY, polyester yarn,etc.
TS008S Specification
Bobbin type | 6"(170mm) |
Power supply | Three phases 400v±10% 50/60HZ |
Motor power | 90w |
Working speed | 100-1000m/min |
Take-up package | Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
Winding traverse | 152mm |
Max.package diameter | 250mm |
Yarn tension | Every spindle with disc tensioner |
Driving | Every spindle per motor |
Auto stop device | Each spindle has yarn detector |
Length counter | Each spindle has length counter |
Electronic yarn clearer | Optional installed |
Air splicer | Optional installed |
Blower cleaner | Optional installed |
Weight (one section) | 350kg |
Dimensions (one section) | L 2250 x W 1100 x H 1400 mm |
Main features
1.Winding speed is 100-1000meter/min,which can be adjusted according to your yarn. Cotton: about 800M/min, Fiber : about 600 M/min,etc. (Density: 0.2-0.4g/cm³)
2.The winding speed and length of all the spindles can be set the same and shown on the touch screen. Also,each spindle is individual and has length counter. Winding speed and take-up length of each spindle can be set differently and shown on each control panel.
3.Each spindle has systems of Anti-Hard-Edge and Electronic Anti-overlapping.
4.Each spindle has auto-stop device(motion sensor/yarn detector).When the yarn broken or the yarn cone finished,the motor of the spindle will immediately stop.
Customers to use

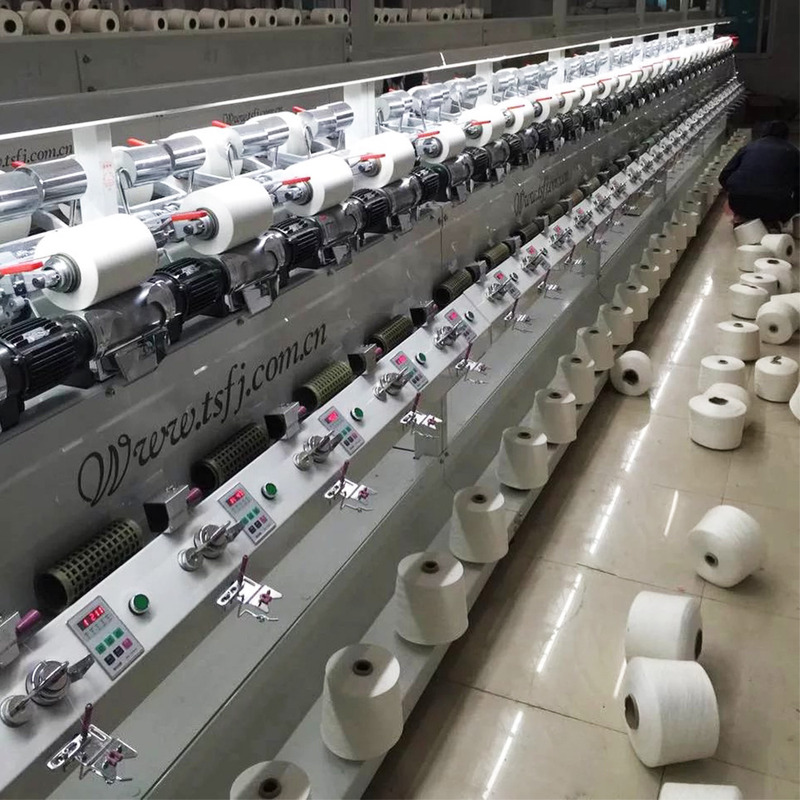

Our yarn winding machines have been sold to Bangladesh,India,UZ,Egypt, Thailand, Russia, Malaysia, Spain and many other countries.We set our first office in Bangladesh so that you can see our machines in Bangladesh.These pictures show our machines used by different factories in different countries.If you are interested in our yarn cone winding machines,contact us please and we will show you more kinds of yarn winding machines.
