Winding Chatters Cone Winder Machine / Wire Winding Machines

1 Set
MOQ
Winding Chatters Cone Winder Machine / Wire Winding Machines
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Textile
Condition: New
Application: Winding Yarns
Automatic Grade: Automatic
Production Capacity: HIGH SPEED
Memory Capacity: Request
Voltage: 380V/220V, 380v/220v
Power: 550w
Dimension(L*W*H): L1454*W1262*H1700mm
Weight: 350kg
Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Video Technical Support, Online Support, Engineers Available To Service Machinery Overseas
Certification: ISO9001:2008 / CE
Name: Winding Machine
Material Capabilities: Textile Material
Product: Silk Yarn
Usage: Winding Reel System
Function: Winding Machine
Spindle Power: 120w
Friction Sticks: Flat Tube Or Conical Cone
Color: White
Basic Infomation
Certification: ISO9001:2008 / CE
Payment & Shipping Terms
Packaging Details: Standard export cases
Supply Ability: 5 Set/Sets per Week
Product Description

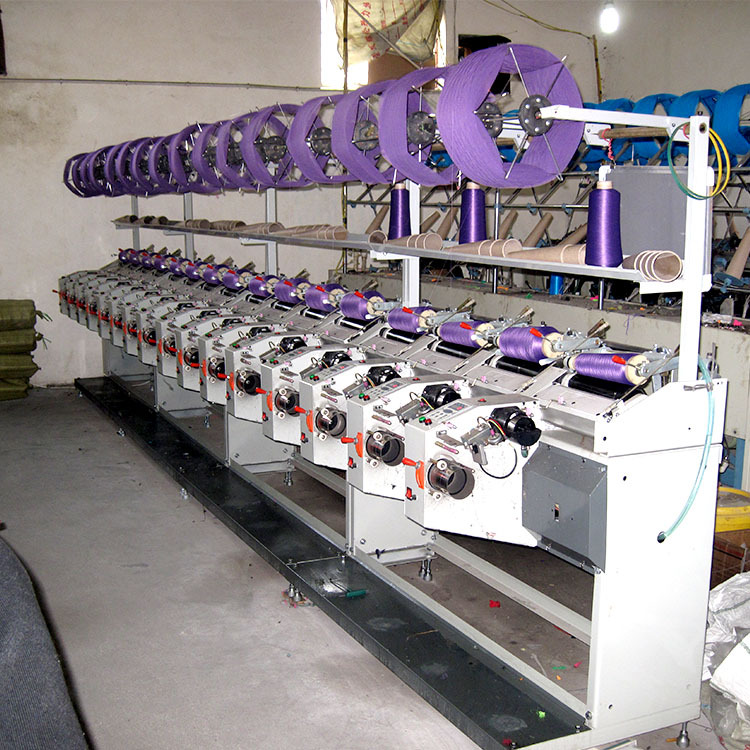

FHTDTK-A hank to cone winding machine

Product description

Hank to cone winding machine is used to winding perfect yarn shape for nylon yarn, fancy yarn, polyester, nylon, wool yarn ,pp yarn, filament and many other special yarns. Slub catcher, clean traveller and Auto-waxing device are optional .The machine is hot sale in domestic and overseas.

The model is especially suitable for chemical fiber, yarn, rope skein such as state complex cylinder pipe, state. As the machines with computer control system; individual spindle control; oil automatically come on; edge device; anti- -stack; auto-stop of break yarn; Fixed-length control; Super feed wire; Slow -starting with adjustable; Yarn speed is adjustable; Yarn tension-controlled device and other advanced technologies, to ensure the high quality of the machine: Its characteristics: Across the line speed; A one -off form; even tension; forming beautiful.

Technical parameters

Product name

FHTDTK-A hank to cone winder

Number of spindles

24(6 spindles/group),48, 96 (Optional)

Spindle gauge

360 mm

Layout

Single side

Power Supply

220V/380V

Spindle power

120w/spindle

Winding speed

500m/min(Speed adjustable)

Max. yarn diameter

220mm

Friction roller specification

Flat bobbin Φ 80mm×220mm
or cone Φ 80mm×220mm taper 3.5°

(Optional)

Driving

Individual cintrol

Electronic Anti-Stack

Inverter control

Dimensions

L 2200 x W 820 x H 1100 mm ( 6 spindles)

Weight

205kg/group

Productivity

10kg/spindle/24h

Operation

48 spindles/a worker
