Thread Winding Machine Precision Winding Machine For Filament Yarn

1 Set
MOQ
Thread Winding Machine Precision Winding Machine For Filament Yarn
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Garment Shops, Manufacturing Plant, Home Use, Textile Machinery
Condition: New
Application: Yarn Winding Machine
Automatic Grade: Automatic
Production Capacity: 10000
Memory Capacity: 10000
Voltage: 380v
Power: 440w
Dimension(L*W*H): 2200x640x1610mm
Weight: 300kg
Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Video Technical Support, Online Support, Engineers Available To Service Machinery Overseas
Certification: CE
Power Supply: 380V±38%,50±1HZ
Linear Velocity: 200--1200m/min
Traverse: 130mm--260mm
Tensioner: Weighted Gate Tension Device
Take-up Package Diameter: 180 To 200mm
Rated Power: 440W/spindle
Form Of Operation: Single Sides Single Layer
Number Of Spindles: Each Section Have 5 Spindles
Spindle Gauge: 360mm
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: wooden case
Supply Ability: 5 Set/Sets per Day
Product Description

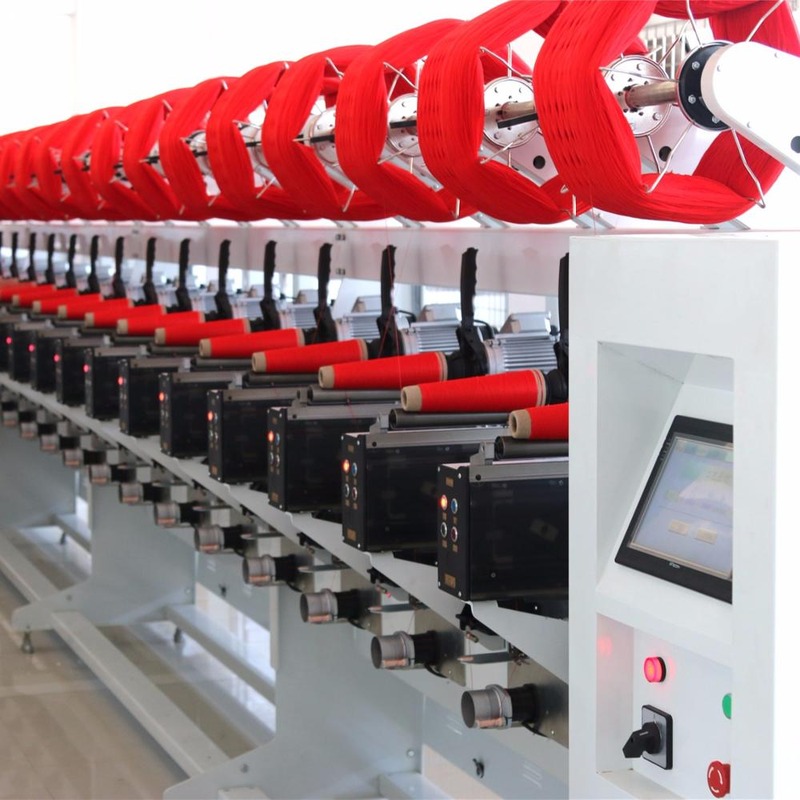

FHZN-800A Precision high speed cone winding machine( pineapple cone winding machine).

Innovative scheme, advanced technology and application. The winding speed of this machine is controlled by computer, which has the maximum of 1200 m/min. Precise and sensitive speed testing system can even ensure the winding length (weight). It is quite suitable for winding yarn of Nylon, Filament yarn, Polyester yarn, FDY, DTY And other chemical fiber.

Types of winding

Precision winding/Electronic winding

Mechanical speed

up to 1000m/min (process speed depending on process parameters)

Package shape

Freely Programmable

Traverse length

30-260mm

Take-up package diameter

180 to 200mm

Package weight

up to 4kg

Supply package diameter

up to 320 mm

suitable Yarns

Nylon, Filament yarn, FDY, DTY,Polyester yarn, Spun thread and etc.

Take up bobbin

0°-5°57'

Layout

single side machine

Number of spindles per section

5 spindles/group

Standard. number of spindles

40 spindles

Spindle Gauge

438mm

Drive

each spindle individual

Installed power

400w per spindle

Density of winding

Freely programmable

Size per section (L*W*H)

2200*640*1610mm

Per section weight

300kg/5 head
