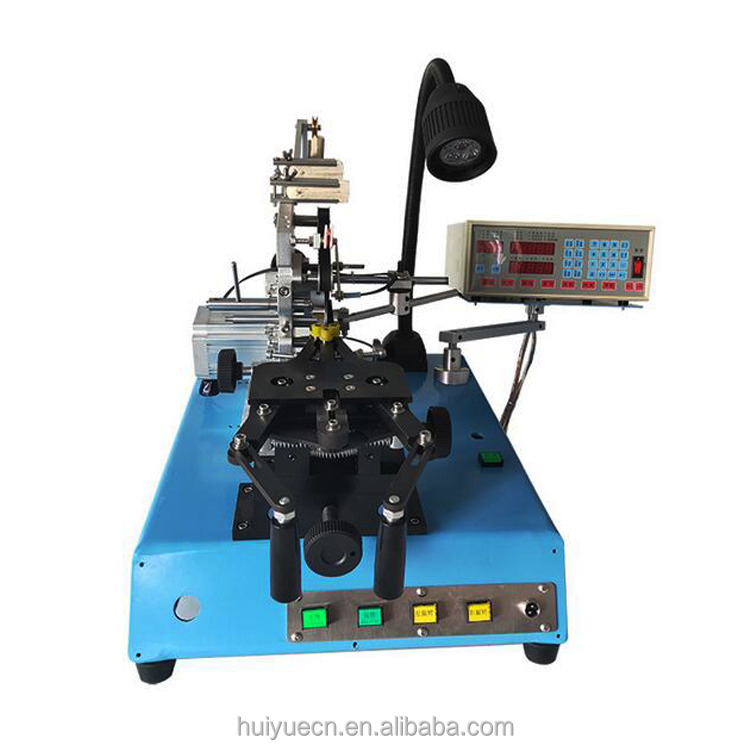

Factory Manufacturers Supply Small Coil Magnetic Ring Toroidal Winding Machine

1 Set
MOQ
$2,541.00(1 - 4 Sets) $2,433.00(5 - 9 Sets) $2,310.00(>=10 Sets)
Price
Factory Manufacturers Supply Small Coil Magnetic Ring Toroidal Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Max. Load (KG): 40 KG
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: Bearing, Gearbox, Motor, Pressure Vessel, Gear
Coil Type: Magnetic Ring
Length Of Axis (mm): 10 Mm
Center Height (mm): 60 Mm
Max.Transformer Capacity(kVA): 220 KVA
CNC Or Not: CNC
Motor Power (kw): 1000
Weight (KG): 40
Dimension(L*W*H): 900X700X600mm
Wire Diameter Range (mm): 0.05 - 1.4 Mm
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant
Showroom Location: None
Appropriate Winding Diameter: 0.05 - 1.4mm
Lap Range: 15-4000T
Storage Ring Width: 2.0-10mm
Machine Speed: 0-2800
Chassis Size: 900X700X600mm
Alias: Manufacturers Supply Small Coil Magnetic Ring Toroidal Winding Machine
After Warranty Service: Video Technical Support
After-sales Service Provided: Video Technical Support
Local Service Location: None
Basic Infomation
Payment & Shipping Terms
Packaging Details: Inspection-free wooden box packaging
Product Description
Product Description

HY-R23 Manufacturers supply small coil magnetic ring toroidal winding machine

For a variety of switching power transformers, supplies, Japanese word transformer, inductance coil, relay coil
1, Taiwan controller, brushless DC motor and drive, environmental protection, low noise;
2, multi-functional microcomputer design, data easy to set, turn off to save data, and power-down protection;
3, teaching function design, can be assisted from the starting point and the width of the position setting, the suspension of the editing of winding information;
4, 0 ~ 999 sets of steps to set the capacity, with brushless motor and precision stepper motor, can be easily set forward, reverse, cross slot and sparse winding work;
5, Special cable assembly design, can be placed up to 6 different diameter, with insulating tape station, can be wound, the tape, insulation with a complete: replaceable type fixture or fly fork winding group operating.
6, Unique motor design, the spindle is directly driven by the motor, clean and environmental protection, improve sensor life;
7, low speed high torque, low power, high torque, suitable for winding switching power supply, solenoid valves, relays, general coil, using a wide range.

Manufacturers supply small coil magnetic ring toroidal winding machine

Model specification

HY-R23 side slip ring winding machine

Wire diameter size

0.05-0.35mm

Lap range 50-4000T
Storage ring width

2.0-10mm

Motor speed

0-2800

Number of memory groups

1000

voltage

220v/50HZ

Chassis size

900X700X600mm

Machine weight

40Kg (Packing wooden box 66kg)

Model specification

HY-R25 Belt type ring winding machine

Wire diameter size

0.15-1.4mm

Lap range 15-1500T
Storage ring width

2.0-10mm

Motor speed

0-2200

Number of memory groups

1000

voltage

220v/50HZ

Chassis size

900X700X600mm

Machine weight

40Kg (Packing wooden box 66kg)

Manufacturers supply small coil magnetic ring toroidal winding machine

Packaging & Shipping

Wooden packing

Our Services

24 hour online technical support and 100% quality warranty for 12 months except consumable parts.

Our vision : created a century brand success for centuries

Our mission : to promote the progress and development of the most cost-effective automation technology

Our values : customer first, teamwork, loyalty, dedication, passion, dedication

Our business purpose : to satisfy customers, employees, businesses of both material and spiritual well-being

Our quality policy : quality is life, progress endless; service is fundamental, innovation to win

Our commitment : no excuses

Our two style : serious, fast

Our three thanksgiving : thanksgiving customers to create my performance,thanksgiving my career platform company, thanksgiving working with my colleagues

FAQ

Dongguan Huiyue Automation Equipment Co., Ltd. FAQ:

Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
Q: Our required parameter is not standard,can made to order?
A: Our machines can made to order according to customer’s requirement.
Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc
Q: What is the payment term?
A: T/T , L/C.
Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
Q: What is the warranty period of the machine?
A: The warranty period is one year.Lifetime Maintenance
