Mix Multiply Yarns Winding Machine Low Cost Doubling Machine And Multiply Yarns To Assemble Winding Machine

1 Set
MOQ
Mix Multiply Yarns Winding Machine Low Cost Doubling Machine And Multiply Yarns To Assemble Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Application: Mixing Multiply Yarns Winding
Automatic Grade: Semi-automatic
Production Capacity: 300-1000Meter/min
Model Number: TS008A
Voltage: 0.18kw/spindle
Power: 0.18KW/Spindle
Dimension(L*W*H): L 1920 X W 850 X H 1600/section
Weight: 300KGS/section
Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Certification: CE
Speed: 300-1000Meter/min
Max Spindle QTR: 40 Spindles
Per Group: 4 Spindles
Winding Yarn Plys: 2-12 Plys
Driver: Each Spindle With A Motor Driving
Speed Gauge: 420mm
Basic Infomation
Certification: CE
Model Number: TS008A
Payment & Shipping Terms
Packaging Details: Wood case
Supply Ability: 50 Set/Sets per Month
Product Description

Machine Application:

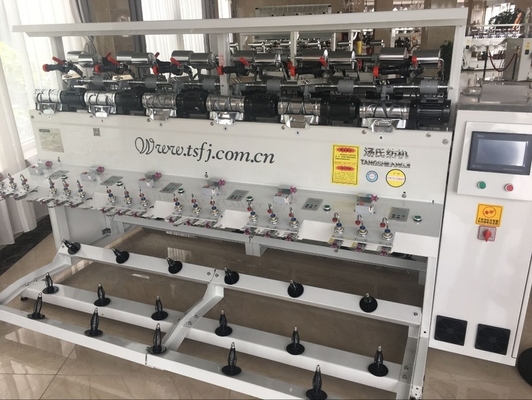

TS008A Multi-ply Yarn Winding Machine, it's for multi ply yarns mixing winding together, can wind like 2-12 plys yarns on the bobbin, can suit like cotton yarn, wool yarn, fiber yarn, polyester yarn and etc.

Parameters:

1. Master digital controller;

2. each spindle run separately with a motor drive;

3. Length counter installed on each spindle;

4. Auto stop device;

5. adjust speed by inverter;

6. uniform tensioner;

Specification:

Technical parameters:

Spindle No.Max 36 spindles
Spindle Gauge420MM
Spindle NO. per group4 spindles
Winding yarn Plys2-12 plys
Winding Speed≤500m/min
Driver:Each spindle with a motor driving
Tensioner:tabletting tension
Auto Stop DeviceYarn sensor
Traverse Gauge6-10' inch
Air SplicerOptional installed
Blower cleanerOptional installed
Brake systemOptional installed
DimensionsL 1920 x W 850 x H 1600 mm (one group size)
