Hotels Fuyuan straw machine small paper tube rewinding machine paper core paper tube machine

1 Set
MOQ
Hotels Fuyuan straw machine small paper tube rewinding machine paper core paper tube machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Motor, Gear
Voltage: 380 V
Power: 3 KW
Dimension(L*W*H): 6500mm*3200mm*1500mm
Weight: 1000
Warranty: 1 Year
Applicable Industries: Hotels, Manufacturing Plant, Restaurant, Home Use, Food Shop, Food & Beverage Shops, Other, Advertising Company
Showroom Location: Egypt, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Morocco, Kenya, Argentina, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Malaysia
Name: Paper Straw Machine
Control System: PLC Control
Diameter: 5-12 Mm
Layers: 3-4 Layers
Thickness: 0.5-1 Mm
Cutting: By Servo Motor
Tube Rolling: Two Big Motors
Glue: By Roller
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Certification: ISO/CE/TUV
Basic Infomation
Certification: ISO/CE/TUV
Payment & Shipping Terms
Packaging Details: 1. Outside package: Standard export wooden cases. 2. Inner package: Stretch waterproof film. 3. Also can be packed according to your requirement.
Supply Ability: 50 Set/Sets per Month
Product Description
Product Introduction

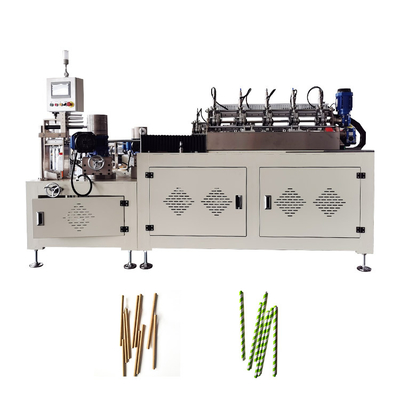

The paper straw machine consists of 6 parts: 1 materials rack, 1 glue painting mechanism, 1 rolling machine, 1 cutting machine, 1 transportation belt and 1 product collector. The machine works with high efficacy and high reliability, suitable for the production of tiny paper tubes (inner diameter 5-12 mm), such as paper straws, ballpoint pen refills, yarn inner tubes, etc.
Product Paramenters
Number of Layers
3 Ply
Coil Diameter
5-12mm
Coil Thickness
0.5-1mm
Winding Head
2 Heads
Number of Cutters
5 Pcs
Gluing Method
One Side Gluing
Rolling Speed
1-50m/min
Speed Control
Frequency Converter
Voltage
380V, 50Hz
Host size
3400*1200*1650mm
Total weight
1300kg








    Intelligent Control
PLC controller, the host is equipped with frequency conversion speed regulation. Touch screen, easier to operate.







Food Grade Material
All accessories are made of food-grade stainless steel, which is rust-proof and wear- resistant, and has good corrosion resistance
to ensure product hygiene and improve service life.







High Efficiency
It can produce 50 meters of straws per minute, and the cutting length of straws can be adjusted freely.
Product Details
Forming Head
Cutting Head
Raw Material Conveying Rack
Gluing Equipment
Product packaging
Packaging:
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
 5. Wrapped with wooden board around and nailed on.
Shipment:
1. Sea transportation is from Qingdao port or other ports.
2. The delivery time is decided by your needed machines or machine parts. But it also follows your needs.
Pre-sales 1. Online all day, to ensure that all your questions are answered within two hours; 2. Give you professional advice and recommend the machine that suits you; 3. Arrange the time and invite you to visit our factory. On-sales 1. one stop service We provide one stop service. a. Because we are a factory with more than 30 years of experience in the production of rewinding machines, we have a more competitive price and quality can be guaranteed; b. We have a very reliable freight forwarding company, and the delivery period is controllable; c. We have a professional engineer team for your instalation and worker traning. 2.customized service All machines can be customized, like color, embossing, jumbo roll core diameter. After-sales One year warranty，we provide free machine parts within one year. Any question you can tell us if you have when operate the machine.
Company Profile
Henan Fuyuan Machinery Manufacturing Co., Ltd located in Zhengzhou City, Henan Province. Our factory is founded in 1984 with rich experience in paper making machine and egg tray making machinery. Our main products include: pulping machine, toilet paper machine, cultural paper making machine, Kraft paper machine, corrugated medium paper machine, different capacity egg tray making production line and other grouped equipment. After nealy 40 years of development, our company has developed into a large enterprise integrating scientific research, production and trading, our factory covers an area more than 33,000 square meters, construction area more than 16,000 square meters, existing staff more than 200 workers, including 5 senior engineers, 22 engineers, and more than 38 technical staff. We are committed to provide customers with a complete solution for paper making project and paper egg tray making production line,welcome the friends to visit us over the world.
