sewing thread winding GH019-SA Automatic A Cone High Speed Winding Machine

1.0 Sets
MOQ
sewing thread winding GH019-SA Automatic A Cone High Speed Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Other
Showroom Location: Viet Nam, Malaysia
Video Outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: Bearing, Gear, Motor
Condition: New
Application: Make Sewing Thread
Automatic Grade: Automatic
Production Capacity: 300-1000meters/min
Memory Capacity: 999999M
Voltage: 220V, 380V
Power: 1.5Kw/ Set
Dimension(L*W*H): 2041*923*1795mm
Weight: 700 KG
Warranty: 1 Year, 1year
Product Name: Field Maintenance And Repair Service
Dimension: 2041*923*1795mm
Spindle No. Per Set: 4 Spindles (8 Cones)
Take Up Bobbin: Cone Type / Cylinder Type / Horn Type
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 100 Set/Sets per Month
Product Description

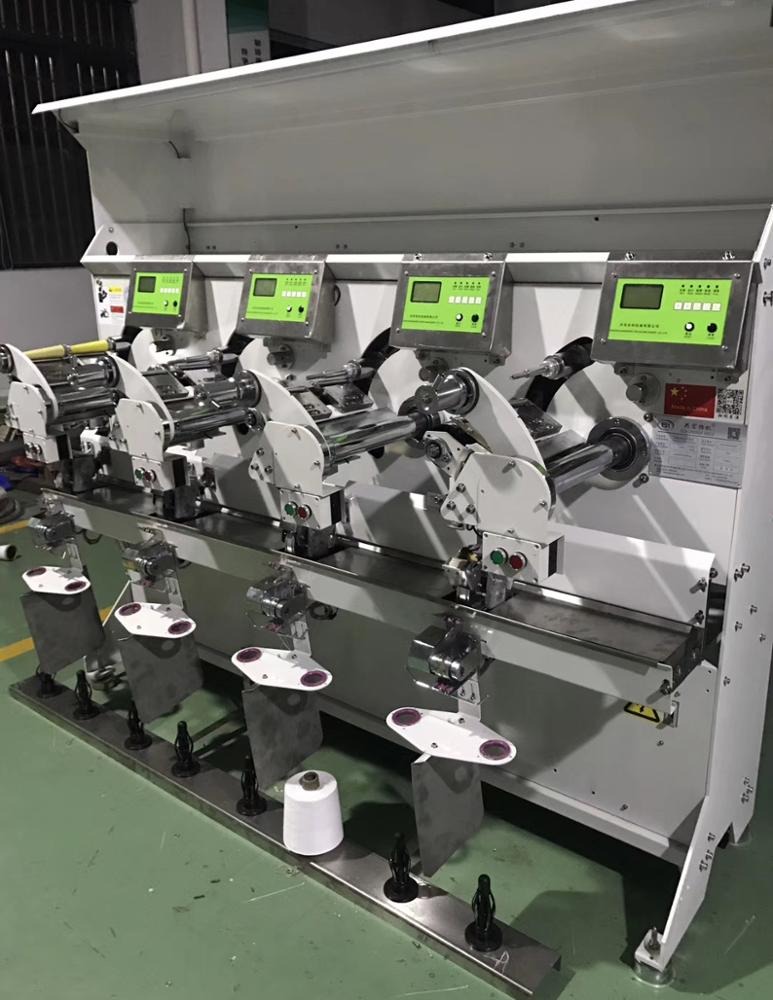

GH019-SA Automatic A Cone High-Speed Winding Machine



Function features:

A high-speed winding machine is applicable for the winding various raw material thread such as sewing thread, embroidery thread, nylon thread, etc. It has structures such as the independent computer control of each spindle, variable frequency speed governor, grooved drum thread feeder, electromagnetic tension control, oil pump cyclic oiling device, etc. It features good looking, high efficiency, easy operation, assured safety and reliability and broad applicability, etc.



High-speed winding parameter table on the top board

Parameter No.

Name

Range

0

Password

0000~99999



Setting Parameter value



1

Full bobbin length

0~30000 (m)

2

Thread winding speed

200~1000 (m/min)

3

Oil wheel speed ratio

30~2000

6

Starting tension

0~100%

7

Ending tension

0~100%

8

Yarn detector condition

0.0~9999″

9

Empty bobbin position confirmation

Computer test value

10

Positioning confirmation

Computer test value

11

Length correction coefficient

0.800~1.200







High speed winding main specification

Model



SA

ST

SY

Shape formation

Cone-type

Column shaped

Horn-type

Tube angle

0°~2°20′

0°

0°

Max. Winding diameter

Φ115mm

Spindle number

4

Maximum drum

1000m/min

Pattern round number

3~4
