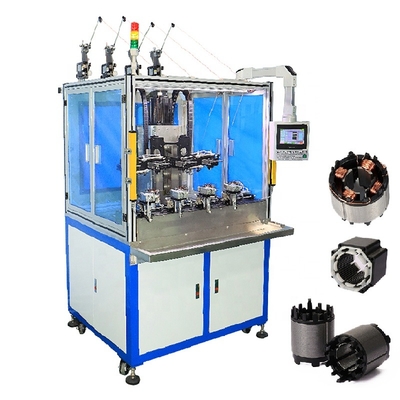

The programmable automatic internal winding PLC winding machine electric motor copper wire winding machine

1 piece
MOQ
The programmable automatic internal winding PLC winding machine electric motor copper wire winding machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Max. Load (KG): 10 KG
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Length Of Axis (mm): 1 Mm
Center Height (mm): 2 Mm
Max.Transformer Capacity(kVA): 5 KVA
CNC Or Not: CNC
Weight (KG): 750
Dimension(L*W*H): 1450*1000*2000mm
Wire Diameter Range (mm): 0.1 - 0.8 Mm
Warranty: 1 Year
Key Selling Points: Patented Product
Applicable Industries: Manufacturing Plant
Showroom Location: None
Supply Voltage: THREE-PHASE AC 380V 50HZ
Source Pressure: 0.45-0.7 Mpa
Rated Power: 12KW
Winding Speed: Maximum 800RMMP, Subject To Product Line Diameter And Size
Counting Accuracy: ±0.01 Circle
Line Type Precision: 0.01 Mm
MOQ: 1 Set
Feature: Internal Winding
Wire Type: Copper Round Wire
Key Word: Large Coil Winding Machine
Basic Infomation
Payment & Shipping Terms
Packaging Details: Inside with plastic film and EPE, outside with wooden case.
Supply Ability: 30000 Piece/Pieces per Month
Product Description
Product Paramenters
Scope of application
 Fits for the Multi groove brushless inner wound product. It’s Inner diameter at least not less than Φ 10 but not more than φ 100,the height of the stator less 100mm.
Efficiency reference
 Use the outer diameter φ 36 iron core,0.31 wire diameter, six pole 55T as an example, the efficiency about 200 PCS/h.
Products Description
Company Profile
Dongguan Qiwei Electric Machinery Technology CO.,LTD
Dongguan Qiwei Motor Technology Co., Ltd. is a high-tech enterprise specializing in the production of automatic winding equipment and electromechanical automation equipment, integrating R&D, manufacturing, sales and comprehensive services. With years of experience in the industry, with the joint efforts of all employees of the company, scientific management, efforts to innovate,and continuous improvement of product quality.
The company has a professional R&D team and various cutting-edge technical talents, and has widely introduced advanced technologies at home and abroad, fully realized the independent production of various motor production equipment, and obtained a number of inventions, utility models and appearance patents. The main products are: double-station series multi-pole automatic winding machine, 2+2-station series automatic winding machine, 4+4-station multi-slot rotor winding machine, 4+4-station three-dimensional automatic winding machine A series of high-tech automatic winding machines, such as machine, 6+6-station automatic ordinary winding machine, 6+6-station three-dimensional automatic winding machine, multi-station stator winding machine and brushless motor winding machine, etc. line equipment. The company's series of products are widely used in the winding production of electromechanical products such as series excitation motors, toy motors, automobile and motorcycle motors, electric vehicle motors, washing machine motors, brushless generators, cooling fan motors, etc. At the same time, we undertake high-quality winding services and technical consultation for various coil products. Qiwei always adheres to the concept of "Quality and reputation first, market development and customer demand as the guide, and pursuit of excellence" to provide our customers with first-class mechanical and electrical equipment and a complete pre-sale, in-sale and after-sale service system. Quality management Standards are used in the whole process of product realization, and strive to create professional and unique high-performance electromechanical equipment products to serve domestic and foreign merchants.
All colleagues of Qiwei wholeheartedly welcome your visit and guidance, and join hands to create brilliant!
Product Process
Exhibition
Certifications
Product Shipping
FAQ
1.How can I get the price?-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
