1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.
2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Supplied in sections of 1 up to 108 heads ready for opearation.
1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.
2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Supplied in sections of 1 up to 108 heads ready for opearation.
Item | Technical parameters | ||||
Types of winding | Drum,Random | ||||
Mechanical speed | Up to 1200m/min (process speed depending on quality of yarn and feed packages) | ||||
Package shape | Cylindrical or conical | ||||
Traverse length | 147mm,150mm,154mm | ||||
Softedges-displacement | 2-8mm | ||||
Package bobbin | Cylindrical or conical of 3°30’ | ||||
Package diameter | Up toφ 290 mm | ||||
Package density | 0.2-0.4g/cm3 | ||||
Fibre / count | Cotton.flax, wool, silk,chemical fiber /Ne 6…180 | ||||
Auto stop while yarn break | With electronic yarn detector,the spindle will stop when yarn break | ||||
Slow start | For smooth start and better winding quality,supportting individual slow start for each spindle(available on request) | ||||
External dimensions | 2540mm(length)*816mm(width) ×1560mm(height) | ||||
Power supply | 3 phased 380V±10% ，50/60HZ | ||||

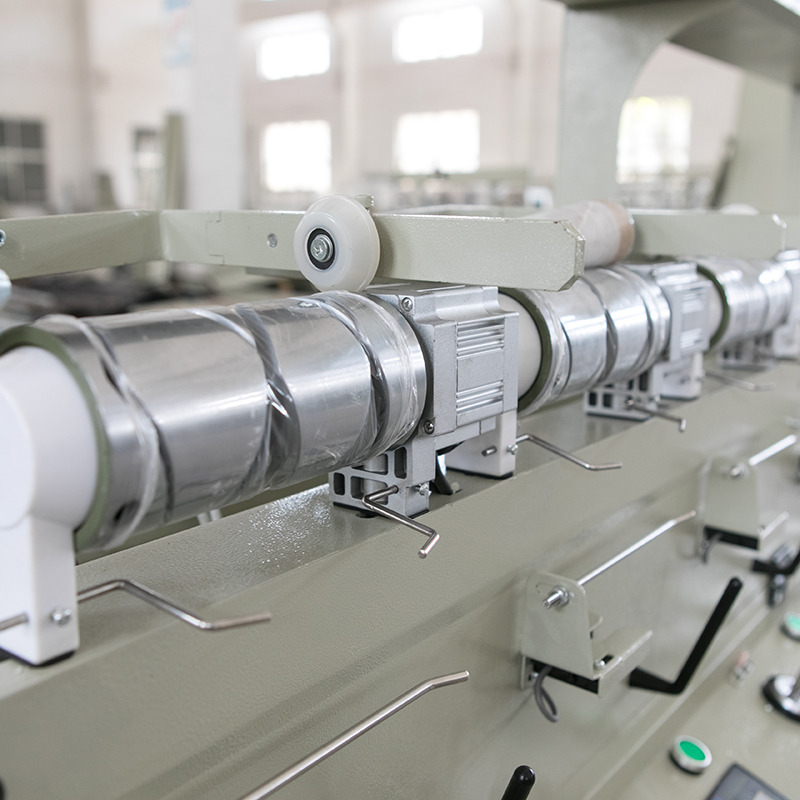

Ni-P Alloy Grooved Drum
Lead: 147mm
Outer diameter: 82mm
Length: 185mm
Turns: 2
Ni-P Alloy Grooved Drum
Lead: 147mm
Outer diameter: 82mm
Length: 176mm
Turns: 2.5
Ni-P Alloy Grooved Drum
Lead: 130mm
Outer diameter: 90mm
Length: 147mm
Turns: 1.5
