Machinery Repair Shops Slider Type Automatic Toroidal Winding Machine

1.0 Sets
MOQ
Machinery Repair Shops Slider Type Automatic Toroidal Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Max. Load (KG): 10 KG
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Gearbox, Motor
Coil Type: TOROID
Length Of Axis (mm): 100 Mm
Center Height (mm): 200 Mm
Max.Transformer Capacity(kVA): 10 KVA
CNC Or Not: CNC
Weight (KG): 40
Dimension(L*W*H): L60*36*64(cm)
Wire Diameter Range (mm): 0.08 - 0.35 Mm
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Showroom Location: United States
Universally Matched Shuttle Model: 3.5 5.0 6.3 Or Customized
Copper Wire Diameter Range(mm): 0.08 ~0.35 (mm)
Min. Inside Diameter Of Finished Coil: 7 (mm)
Out Side Diameter Of Finished Coil Range: 10 ~80 (mm)
Height Of Finished Coil Range: 5 ~45 (mm)
Max. Speed: 1800rpm
Power Source: AC220V /110V +10%, 50/60 Hz
Dimension: L60*36*64(cm)
Net Weight: 40Kgs
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
After-sales Service Provided: Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Video Technical Support, Online Support, Free Spare Parts
Local Service Location: United States
Basic Infomation
Model Number: 3.5 5.0 6.3 or customized
Payment & Shipping Terms
Packaging Details: customs approved wood box for Slider type automatic toroidal winding machine
Supply Ability: 8000 Set/Sets per Year Slider type automatic toroidal winding machine
Product Description
Product Description

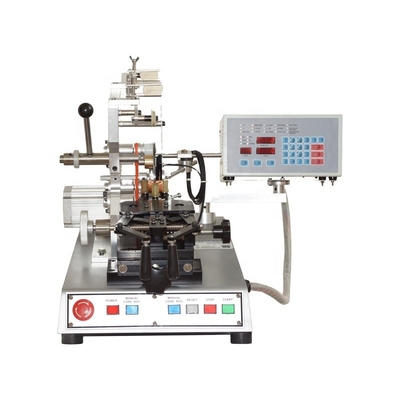

Description of SS900S6 slider type automatic toroidal winding machine :
The SS900S6 Slider type automatic toroidal winding machine adopts CNC toroid controller, it is slider type winding shuttle.It's an accurately and reliability digital toroid-winding machine. it is used for winding toroidal inductor, toroidal transformer,toroidal current transformer, toroidal current sensor, toroidal coil, toroid chock coil, power inductors, power magnetics,UPS inductor, converter inductors, watter metter sensors, etc.

Features of SS900S6 slider type automatic toroidal winding machine :
1. Collocate slider type winding head,interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire size, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for wire loading and winding.
4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.

Specification of SS900S6 slider type automatic toroidal winding machine :
 Copper wire diameter: 0.08 ~0.35mm
Min. Finished ID: 7mm (will be different by shuttle size and coil height. )
Finished OD range: 10~80mm
Max. Speed: 1800rpm
Winding motor: 1/2HP DC brushless motor
Spread motor: Stepping motor
Memory capacity: 999 steps
Power source: AC220V /110V +10%, 50/60 Hz
Dimension: L60x36x64(cm)
Net weight: 40kgs
Model
Universally matched shuttle model
Copper wire diameter range(mm)
Min. inside diameter of finished coil (mm)
Out side diameter of finished coil range (mm)
Height of finished coil range (mm)
SS900B2
1.6 1.8 2.0
0.07 ~0.25
2.5
5 ~ 16
3 ~8
SS900B3
1.8 2.0 2.5
0.07 ~0.25
2.5
5 ~16
3 ~8
SS900B4
2.5 2.8 3.0 3.5 or customized
0.15 ~0.8
3
5 ~60
3 ~25
SS900S4
2.6 3.0 3.5 or customized
0.05 ~0.3
4.5
5 ~60
3 ~25
SS900B6
3.5 5.0 6.3 or customized
0.3 ~1.2
6
10 ~80
5 ~45
SS900S6
3.5 5.0 6.3 or customized
0.08 ~0.35
7
10 ~80
5 ~45
SS900B8
8 10 12 15 or customized
0.35 ~1.5
12
20 ~150
8 ~80
SS900S8
8 10 12 15 or customized
0.3 ~0.6
15
20 ~150
8 ~80
