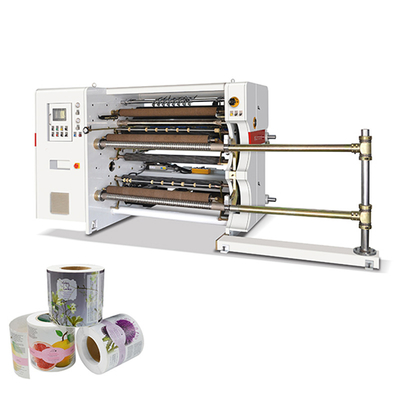

Retail BOPP PVC PE Plastic Film Roll Slitting Rewinding Machine For Flexible Packaging Products

1.0 set
MOQ
Retail BOPP PVC PE Plastic Film Roll Slitting Rewinding Machine For Flexible Packaging Products
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Retail, Food Shop, Printing Shops, Food & Beverage Shops
Showroom Location: None
Condition: New
Type: Plastic Film Slitting Machine
Computerized: Yes
Voltage: 380V
Dimension(L*W*H): 3900*3500*2250mm
Weight: 4800KG
Warranty: 1 Year
Production Capacity: 400 M/min
Key Selling Points: High-accuracy
Max. Workable Width: 1800mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor, Bearing, Gear, Gearbox, Engine, PLC
PLC Brand: Siemens
Product Name: Plastic Film Slitting Machine
Function: Cutting Plastic Film Roll
Model: SLC-1300
Speed: 400 Meters Per Minute
Automatic Grade: Full Automatic
Finished Products: Custom Width Rolls
Cutting Way: Round Blade Knife
Cutting Width: 1300mm
Pressing Rollers: Cylinder Press
Cutting Precision: 0.20mm
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
After-sales Service Provided: Free Spare Parts, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Certification: CE
Basic Infomation
Certification: CE
Model Number: SLC-1300
Payment & Shipping Terms
Packaging Details: wooden case packaging
Supply Ability: 35 Set/Sets per Month
Product Description
Product Description

BOPP PVC PE Plastic Film Roll Slitting Rewinding Machine For Flexible Packaging Products

Usage:
This SLC series slitting rewinding machine adopt the friction rewinding shafts,which can
better to slitting and rewinding laminated film roll material converting,such as BOPP,PVC,PE and so on uneven thickness material.The air friction shafts can separately control rewinding tension.It is widely used in the printing and packaging,label film industry products. For example,it can slit and rewind after printing
bottle water,beverage label jumbo roll into customize width small rolls.In addition, it can also slit paper-plastic composite
materials, silicone coated grease proof paper, PE coated paper etc. Making food packaging pouch,medical drugs pouch,plastic film
bags,label,sticker paper label and so on.

Main Features
1. The machine body adopt 60mm thickness high quality steel plate.This ensures that the machine avoids shaking when running at high speed, thereby improving the accuracy of paper rolls slitting.
2. The machine has three servo motors, which are used for the transmission of materials and the winding after slitting.
3. SIEMENS PLC,it have an intelligent operating program system with many function,automatic counting meter,automatic stop as setting winding meters,emergence stop and so on.
4. Automatic tension control. The machine can automatically measure the diameter of the motherroll and automatically adjust the output tension.
5.The rewinding shafts adopt the air friction shafts,which can separately control tension in the each position in the shafts.
6. The rewinding rolls be pressed by the nip rollers,which can better to rewind the finished rolls. The finished rolls edge will
more flat and neat,more tight.
7. The web guider system automatic detect the web edge and adjust position,which can improve the slitting accuracy.
8. Slitting knife shafts can be take out of machine. Due to make small width rolls,the model slitting machine have many knives.So this type knife shaft can be easily adjust and change knives.
9. Slitting knives: round blade knife and flat razor knife are both available.
Specification
MAIN PARAMETERS OF SLA SLITTING AND REWINDING MACHINE
value
Model Name
SLC-1300
SLC-1600
SLC-1800
Max. Width of Unwinding Roll
1300mm
1600mm
1800mm
Max. Dia. of Unwinding Roll
Φ800mm
Φ800mm
Φ800mm
Max. Bearing Capacity
of Unwinding Roll
800KG
900KG
1000KG
Max. Diameter of
Rewinding Rolls
φ600mm
φ600mm
φ600mm
Min. Width of Slitting
20mm
20mm
20mm
Paper Core Size
3inch
(customize available)
3inch
(customize available)
3inch
(customize available)
Thickness Range
15-300 micron
15-300 micron
15-300 micron
Cutting Precision
±0.2mm
±0.2mm
±0.2mm
Speed
350m/min
350m/min
350m/min
Total Power
18KW
28KW
23KW
Machine Weight
4500kg
5200kg
6000kg
Overall Dimension
4500*2800*1950mm
4500*3200*1950mm
4500*3800*1950mm
Application
Case 1: Bottle Water And Beverage Label Stock Rolls
Case 2: Self Adhesive Paper Label Stock Rolls,Sticker Label Rolls
Case 3:Laminated Film Rolls For Making Food And Medical Pouch
Customer Factory Photos
After Sales Service
Packing & Delivery
Company Profile
Binbao Machinery was co-founded by three dynamic and experienced young people, they are Alfred, Lam and Ives. They have been working in the packaging and printing machinery industry for nearly ten years. After graduating from Shanghai University of Economics and Business in 2008, Alfred has been working in a well-known bank in Shanghai, but he has never given up his love for machinery. Lam and Ives are colleagues. They have worked together for four years in a packaging and printing machinery manufacturer in Ruian, Wenzhou. Lam is a test engineer and Ives is responsible for mechanical design and assembly. They are willing to think, use their knowledge to improve the performance of the modified machine, and enjoy it.Lam and Ives met Alfred at a European packaging and printing machinery exhibition in 2014. They found that no Chinese company at the exhibition only focused on the production of paper roll slitting machines and sheets cutting machines.This subdivision field made them feel extremely excited. After they returned to China, after careful planning, their first slitting machine was finally completed in the warehouse of Ives father in early 2015. From then on, they began to process paper slitting machines and sheets cutting machines for Ruian's printing presses, paper cup machines, paper bag machines and other manufacturers.
In fact, in Ruian, the base of packaging and printing machinery, there are many machinery companies that produce slitting machines and sheets cutting machines, but they all spend their time and energy on paper products machinery with higher total prices and better profits. Slitting machine and sheets cutting machine are just a common tool, a supporting role ignored by everyone. But the founders of Binbao Machinery don't think so. They firmly believe that supporting roles also play a key role. Slitting machines and sheets cutting machines are widely used in packaging and printing production companies, and their stability and cutting quality also affect the value of the entire company's products. Out of their love for machinery, they continue to transform and upgrade the machines they develop.
Under the influence of the epidemic in 2020, their processing plants lost nearly half of their orders. Fortunately, they finally have enough time to design their own office, factory, and website, and start their brand development. Binbao Machinery will use its rich experience to continuously improve and improve the performance of slitting machines and sheets cutting machines, provide high-quality machinery and after-sales services to end users all over the world, and be the "BEST SUPPORTING ACTOR" for world packaging and printing industry.
FAQ
Q: What should I do to find the appropriate machine?
A: You should offer some info.
1. Material name
2. Material thickness or gsm
3. Max. diameter and width of mother roll
4. Minimum width of finished roll5.Maximum rewinding diameter
You also can send your message of your slitting processing to our sales. They will help you find the best solution.

Q: How can I operate the machine?
A: Our machine is very easy to operate. We also offer the manual and video to teach you. Welcome to visit our factory to learn
more details by yourself. We also share the slitting rewinding machine and sheets cutting machine operating
videos in our YouTube Channel.

Q: What about your after-sales service?
A: Call us, email us, or video-chat, we will offer solutions within 24 hours

Q: What is your terms of payment?
A: We accept many kinds of payment. Please contact us for details.

Q: What is your advantage?
A: Not only good quality but also good service
1. Over 20 years manufacturer
2. All the accessories made by ourselves.
3. We have our own research and development design team.
4. We accept products customization.
5. 24 hours after-sales service and engineer oversea service.
