Bobbin type: | 5"(170mm) |
Layout | Double-side, can be 12-96 spindles |
Power Supply | Three phases 380V 50/60HZ |
Driving | Every spindle per motor |
Power Consumption | 0.09KW/spindle |
Take-up package | Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
Yarn tension and waxing device | Every spindle has a yarn tension and waxing device |
Auto Stop Device | Each spindle install auto stop device |
Electronic Anti-Stack | Inverter control |
Cleaner device | Every spindle has a Mechanical Knife yarn cleaner |
Electronic Yarn Cleaner | Optional installed |
Air Splicer | Optional installed |
Blower cleaner | Optional installed |
Lighting System | Contain |
Dimensions | L 11850 x W 1150 x H 1500 mm |
EQUIPMENTS:
Inverter (MITSUBISHI Brand), Drum(Super plastic Alloy),
Motor(Ning bo), Controller(Hang Zhou )
PARAMETERS:
1. Drive: every spindle per motor
2. Winding speed: 300-1000 M/min
3. Has function of auto stop when yarn break.
4. Package Dia≤ 250mm; Take-up Traverse: 150mm.
5. Each spindle with length counter;
6. Advanced control panel.
Drum
Spindle head
Motor
Liquid crystal display
Power master switch
Fan
Tensioner
Creel
Switch button
Sensor

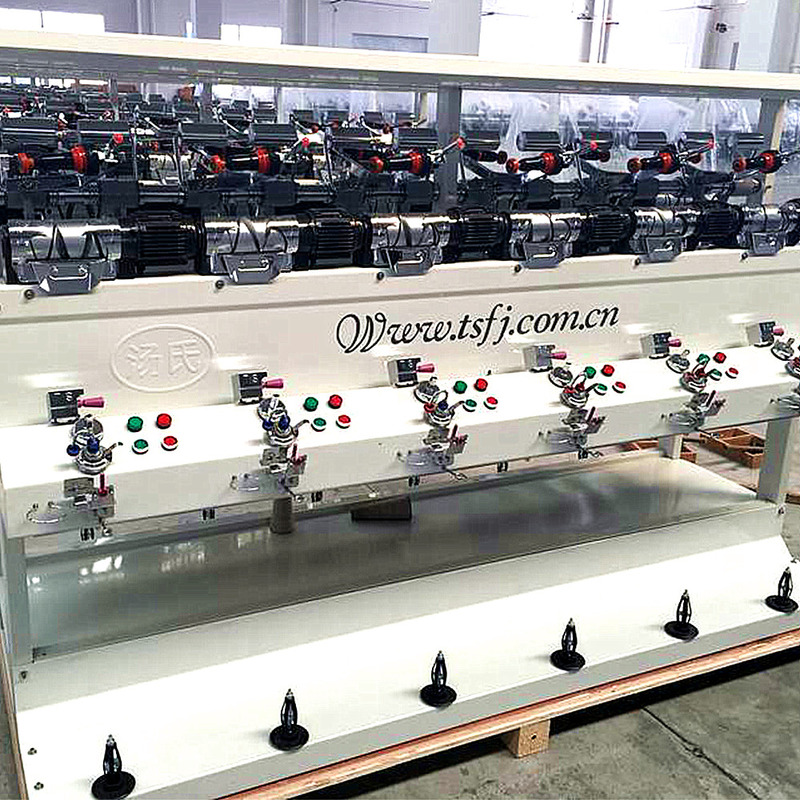

TS008M High Speed Tight(Hard) winding machine, it’s mainly for the yarn After Dyeing
rewinding or yarn rewinding using cone to cone directly, suit for winding like Fiber yarns,
Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or
Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can
alleviate the intensity of labour for next processing work.
Xinghua Tangshi Textile Machinery Co.,Ltd was established in 1993, which located in XingHua district
industrial park(XingHua exit of NINGJINYAN Highway).
Xinghua Tangshi Textile Machinery Co.,Ltd was an experienced and professional manufacturer, it already
has
23 years’ experience
of producing drum winding machines, with advanced technics and production
equipments it can output more one thousand winding machines annually. after these years hard work and
faith cooperation, Tangshi Textile Machinery Co.,Ltd got a good reputation. our products like GA014 series
soft and tight winding machine,
TS008
semi-automatic soft and tight winding machine,
TS230,280,290,300
big take-up winding machine. and we also can make the special machines according to the customers
different demands. we service the textile industry in conformance with the aim of “
professional produce,
faith operation, reputation brand ”.
The products are widely sold at domestic and also export to south-east
asia countries gradually.
Can supply kinds of winding machine is our company’s feature, good quality and timely deliver is our prom-
ise. sincerely hope we can go forward hand in hand and set up bright life together!
Winding machine------------Tangshi Textile Machine Co.,Ltd will be your best choose!
