Features

Specifications

Condition: New, New

Applicable Industries: Manufacturing Plant

After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support, No After-sales Service, Engineers Available To Service Machinery Overseas

Function: Automatic Coil Winding Machine

Type: Servo System Control

Voltage: 220V

Basic Infomation

Payment & Shipping Terms

Packaging Details: wooden box

Supply Ability: 20 Set/Sets per Month

Product Description

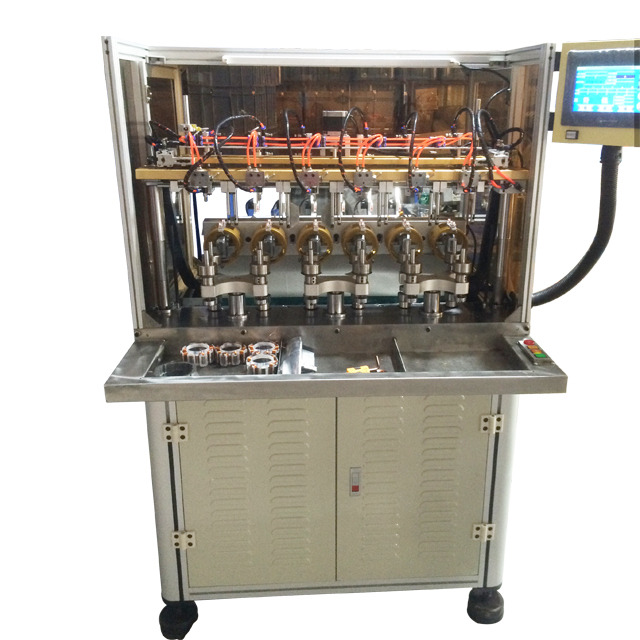

1.6 Station outer winding machine

Features:

1. program control board control .

2. machine with wire cutting sensor switch ,if wire broken machine will stop automaticlly , avoid waste of copper .

3. pecial fixture design , avoid wire loose while winding .4. auto flipping function , it can change wire spindle and winding at same time .

suitable for small transformer , relay , small motor coil , pole motor

SPECIFICATION
MODEL	HF-R40-6	slot	4-24slot
total spindle	2 spindles	RPM	1500-3200 RPM
Stator inner diameter	20-100mm	Power supply	Single phase 220v 50/60HZ
Stator out diameter	30 -150 mm	controller	Motion control
Stator stack height	0-40mm, over 40 mm is SPM .	dimension	930x910x1400 mm ( LxWxH)
Wire diameter	0.1-0.6 mm	Weight	350 kgs

External plant 6 stations wind turbine
