The Factory CNC Automatic Foil Winding Machine For Transformer

1 Set
MOQ
The Factory CNC Automatic Foil Winding Machine For Transformer
Features Gallery Product Description Request A Quote
Features
Specifications
CNC Or Not: CNC
Weight (KG): 10000
Condition: New
Dimension(L*W*H): 4700*3200*2200mm
Max.Winding Width(mm): 800
Material: Other
Coil Type: Round, Rectangle
Length Of Axis (mm): 800
Winding Speed(rpm): 20
Counting Precision: 0.001
Welding Method: TIG
Cutting Method: Auto
Insulation Quantity: 2
Decoiler Quantity: 1
Decoiler Loading: 2000
CNC System: Servo Motor
Key Selling Points: High Safety Level
Applicable Industries: Manufacturing Plant
Warranty: 1 Year
Showroom Location: None
After-sales Service Provided: Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Video Technical Support, Online Support
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Pakistan
Axial Length: 180~800 Mm
Outside Diameter(max): 800 Mm
Inside Diameter(min): 130 Mm
Foil Roll Inside Diameter: 400 ~500 Mm
Foil Roll Outside Diameter: 1000 Mm
Mandrel Load(max): 2000 KG
Expanding Force: 0~10000 N
Tension Working Force: 0~0.6 Mpa
Centering Way(deviation Recertify): Manual/ Auto
Mandrel Rotation Speed: 0~20 RPM
Basic Infomation
Payment & Shipping Terms
Packaging Details: Seaworthy packing ,standard packing .
Supply Ability: 30 Set/Sets per Month
Product Description



Product Description

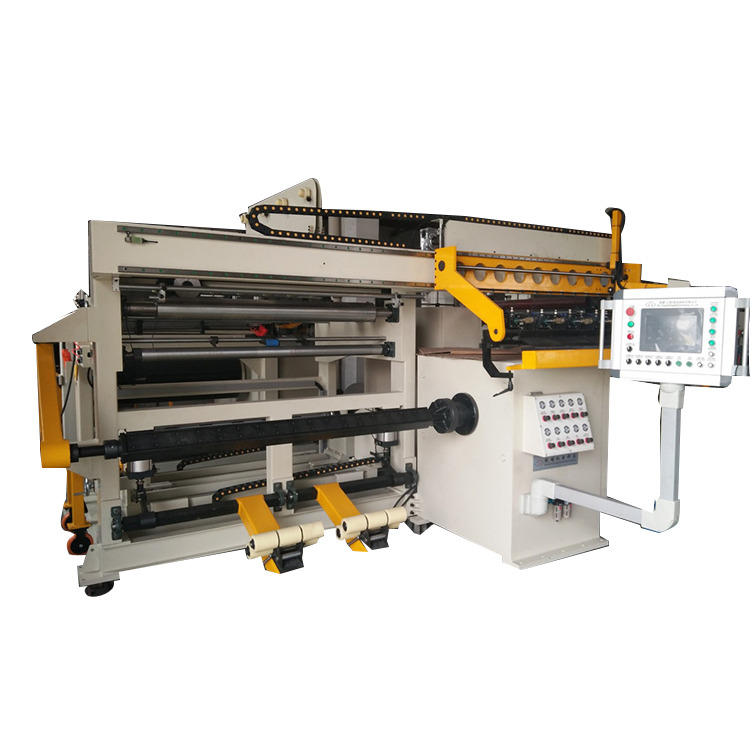

 BR-II-800 Transformer coil  Double layer Foil Winding Machine

1.General description

BR-800 foil winding machine used for transformer and electrical industry foil coils winding.

Foil coil based on different thickness of copper and aluminum foil, with wide strips insulation material as layer insulation, narrow strips for end insulation, completes the winding process, and finish lead welding and surface dressing at the same time. Each function of equipment provides enough support.

2.Main technical performance

S.N

 ITEM

SPECIFICATION

1

Coil range



1.1

Axial length

180~800 mm

1.2

Axial length(with lead)

200~950 mm

1.3

Outside diameter (exclude wires)

Φ700 mm

1.4

Outside diameter(max)

Φ800 mm

1.5

Inside diameter(min)

Φ130 mm

1.6

Coil type

Round, rectangle

2

Coil material



2.1

Material of conductor

CU(Copper) or Al(aluminum)

2.2

Conductor Width

180~800 mm

2.3

Thickness

Au 0.35~2 mm,  Al 0.6~2 mm

2.4

Foil roll inside diameter

Φ400 ~Φ500 mm

2.5

Foil roll outside diameter

Φ1000 mm




3.Detailed photos

4.Coil production
