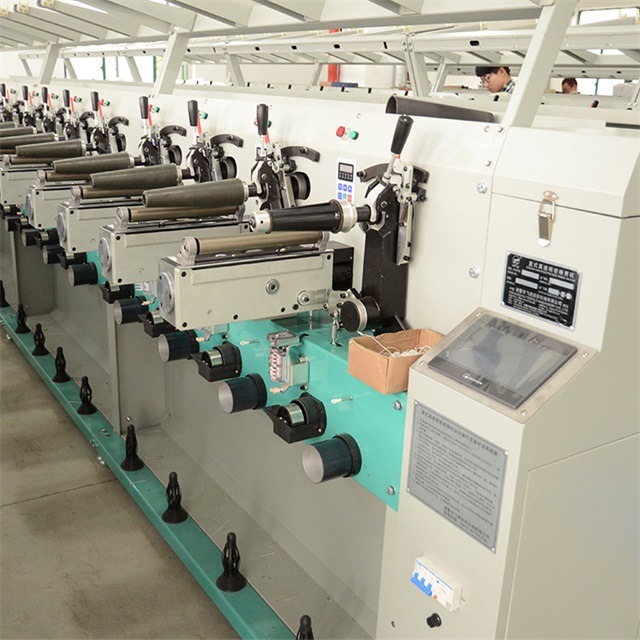

FEIHU China high speed precision winder
This series of high-speed precision winder is applicable to the winding of hank rewinding or rewinding of cotton, hemp, wool, chemical fiber and blended yarn. The machine is single-sided work, sheet metal structure; touch screen centralized control; Yarn forming adopts fully digitized, programmable, high-speed and online tension controllable automatic tracking automatic unwinding electronic yarn forming control system, removing the traditional sense Mechanical structure transmission maintenance is cumbersome and mechanical noise.
Product name |
FH-GS High-Speed Precision Winding Machine
|
Model | Single-sided, 4spindles/group, Standard configuration is 60 spindles/set. (Optional)
|
Forming method | Electronic guide yarn.
|
Bobbin type | Flat bobbin or cone(according to sample bobbin of customer.)
|
Maximum silk billet diameter
| ≤300mm
|
Maximum winding range
| 152mm/190m/230mm (Optional) |
Single spindle total power
| 515W |
Power supply | 190-230mm |
Twisting traverse | 380V 50HZ three-phase five wire system. (Optional)
|
Per group size
| L1770mm X W700mm X H1560m Head chamber of machine size: L460mm X W420mm X H1200mm
|
Mechanical speed | Max 1200 m/min(process speed depending on process parameters)
|
Oil way
| Automatic oiling, speed adjustable
|
Yarn count range
| 20d---1000d
|
Package weight | Up to 5kg |
Yarn type
| Covered yarn, ordinary filaments, elastic yarns, fine technical yarns etc.
|
