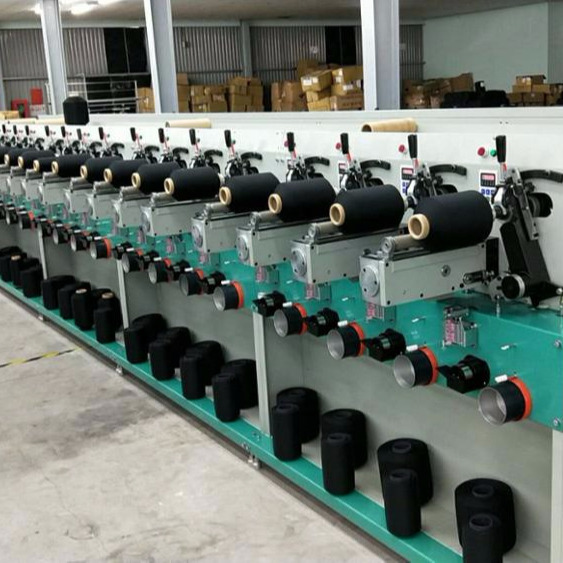

FHJM-A straight precision cone to cone and hank to cone winding machine is a series of winder series produced by Feihu textile machinery company. It is suitable for all kinds of raw materials such as silk, hemp, yarn, etc. cylinder. this machine has high characteristics productivity, low loss, low noise, long life, stable performance.
Features:
Using centralized control, Individual management
Using DC brush motor, more power saving
Using computer control, Broken yarn stopped , Metering function
Using Soft start,Less loss,easy to use.
Using mechanical anti-stack,Soft edge,Make bobbin more uniform
Using Lubricating oil, The noise is lower, Accessories long service life
Adjustable forming length, Shoulder angle and tension control
Model: | Single-side, single spindle, centralized control |
Spindle: | 4 spindles/group, the standard 24 spindles / set, min 4 spindles/set. |
Spindle distance: | 370mm |
Oil way: | Automatic oiling, speed adjustable |
Winding method: | Single spindle active precision winding |
Winding shape: | Straight edge, bevel edge adjustable |
Winding tube: | Parallel bobbin, pagoda bobbin |
Winding travel: | 120-230mm |
Winding speed: | ≤500m/min |
Winding diameter: | ≤280mm |
Skein diameter: | ≤550mm |
Cartridge diameter: | ≤320mm |
Actual power: | 120 W/spindle |
Dimensions: | L1620 X W710 X H1560 mm/4 spindles Master control box L440 X W260 X H1320mm |
Applicable yarns: | Textured or flat filaments, elastic yarns, silk, staple yarns, fine technical yarns etc. |
We could make special type according to the customer’s request.
