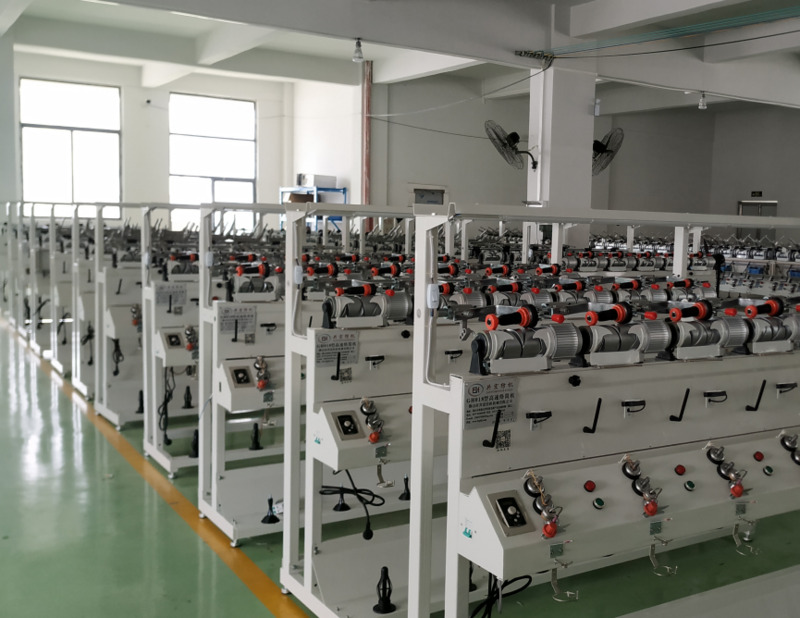

High speed yarn cone to cone rewinding machine
GH018-A High speed yarn cone to cone rewinding machine used in chemical fiber, cotton yarn, filament, low stretch yarn, winding into a cone or a cylinder, for the next process, good forming, without the phenomenon of edge collapse. To alleviate the labor intensity of the process, adaptation high speed production.(For the major manufacturers: lace factory, knitting factory, circular knitting machine, hosiery machine etc..)
GH018 A Technical Parameters
Technical characteristics | Technical Parameters |
Grooved drum | O/D 82mm,pitch 2.5,symmetrical 0° |
Take-up package | 0°Cylindrical tubes, or conical 3°30′,4 °20′ |
( Selection )Slow start | For smooth start and better winding quality |
Yarn brake with weights | It avoids the fluttering of the feeding yarn, provide suitable winding tension |
Electric waxing device | Adjusting the clearing gap |
Configuration | 6 spindles / section |
Composition | Max. :18 section /set(108 spindles) |
Motorization | 1 coaxial 3phased AC motor per spindle, controlled by 1 inverter in each line of 54 spindles |
Max. speed | 1100m /min |
Traverse | Standard:147mm |
Balancer | The winding pressure can be controlled by balance of spring |
Yarn detector | With optical sensor |
Max. package | 250mm |
Start / stop | By film switch, general control for single side by LCD |
Radial anti patterning system | The anti patterning parameter is controlled by computer |
(Selection)Blowing and suction cleaner | 1100W motor power of cleaner |
Absorbed power | 100W per spindle at max. speed, excluding the motor power of cleaner |
Power supply | 3 phased 400V ±105, 50/60Hz |
Machine(12spindles)weight and dimension | 2 side 350kg 2250mm (length)×1100mm(width)×1400mm(height) |
(Selection) Weight for cleaner | 132 kg According to spindle quantity |
Lighting system | Lamp |
Air splicer | Ordered separately |
